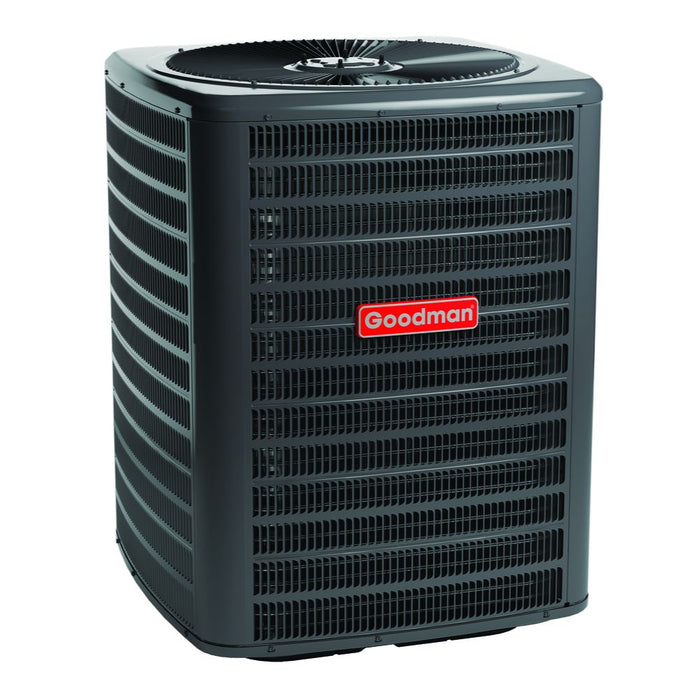

4 Ton Up to 15.2 SEER2 Goodman Air Conditioner Condenser - GLXS4BA4810
The Goodman GLXS4BA4810 is a high-performance 4-ton air conditioner condenser engineered to deliver reliable whole-home cooling with efficiency ratings up to 15.2 SEER2, depending on the matched indoor coil or air handler. Built with a high-efficiency scroll compressor, R-32 optimized coil, and a heavy-duty louvered steel cabinet, this unit offers long-term durability, quiet operation, and dependable cooling performance across a wide range of compatible AHRI-certified system pairings.
Ideal for replacement or new construction, this condenser provides the rugged reliability, strong airflow, and service-friendly design that homeowners and installers expect from Goodman.
Unit Features & Benefits
GLXS4BA4810 – 4 Ton Goodman Air Conditioner Condenser
Features
-
4 Ton (48,000 BTU/h) nominal cooling capacity
-
Up to 15.2 SEER2 (efficiency varies by AHRI match)
-
High-efficiency scroll compressor
-
Single-stage cooling operation
-
Copper tube / aluminum fin coil optimized for R-32 refrigerant
-
Heavy-gauge, corrosion-resistant louvered steel cabinet
-
Factory-installed liquid-line filter drier
-
High-efficiency condenser fan motor
-
Fully charged for 15' of line set
-
AHRI Certified (varies by matched system)
Benefits
-
Strong, dependable cooling for larger homes
-
Lower energy use with SEER2-optimized design
-
Rugged, protective cabinet for long service life
-
Quiet operation engineered for residential comfort
-
Flexible AHRI system combinations for multiple installation options
Specifications
(Dimensions from GLXS4B condenser manual — 4 Ton model)
| Category | Specification |
|---|---|
| Model | GLXS4BA4810 |
| Tonnage | 4 Ton |
| Cooling Capacity | 48,000 BTU/h |
| SEER2 | Up to 15.2 (AHRI dependent) |
| Compressor | Scroll |
| Stages | Single-stage |
| Refrigerant | R-32 |
| Coil Type | Copper tube / aluminum fin |
| Factory Charge | Pre-charged for 15 ft line set |
| Fan Motor | High-efficiency condenser fan |
| Electrical | 208/230V, 1-Phase |
| Cabinet Material | Heavy-duty louvered steel |
| Dimensions (W × D × H) | 35½″ × 35½″ × 36½″ |
| Weight | Approx. 200–215 lbs (varies slightly by submodel) |
| AHRI Certified | Yes — multiple AHRI matches available |
AHRI Certification
Warranty
Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
