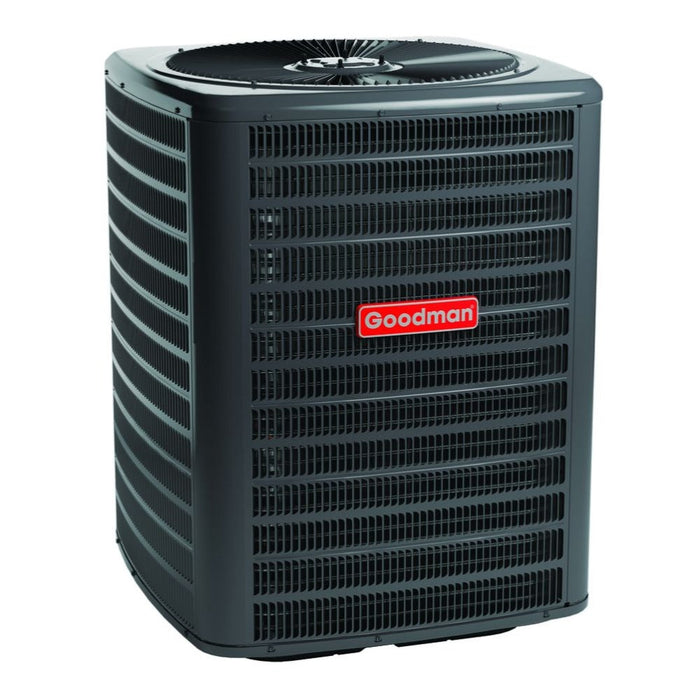

2.5 Ton Up to 15.2 SEER2 Goodman Air Conditioner Condenser - GLXS4BA3010
The Goodman GLXS4BA3010 is a reliable and efficient 2.5-ton outdoor AC condenser engineered to deliver dependable cooling performance with up to 15.2 SEER2 efficiency. Designed with a high-efficiency scroll compressor, R-32 optimized coil, and a durable louvered steel cabinet, this unit provides quiet operation, reduced energy consumption, and long-term system reliability. Compatible with a wide range of indoor coils and air handlers, it offers multiple AHRI-certified combinations to meet different installation requirements.
Ideal for replacement or new construction, this condenser delivers the rugged durability and solid cooling performance homeowners expect from Goodman.
Unit Features & Benefits
GLXS4BA3010 – 2.5 Ton Goodman Air Conditioner Condenser
Features
-
2.5 Ton (30,000 BTU/h) nominal cooling
-
Up to 15.2 SEER2 efficiency (varies by AHRI match)
-
High-efficiency scroll compressor
-
Single-stage cooling operation
-
R-32 optimized copper tube / aluminum fin coil
-
Heavy-gauge louvered steel cabinet
-
Factory-installed filter drier
-
High-efficiency condenser fan motor
-
Fully charged for 15' of line set
-
AHRI Certified (varies by coil/air handler match)
Benefits
-
Strong, reliable cooling performance
-
Reduced energy use with SEER2-optimized design
-
Quiet, durable operation engineered for residential use
-
Multiple AHRI combinations offer flexibility for system matching
-
Long-lasting coil and cabinet construction ensures extended system life
Specifications
(Dimensions sourced from GLXS4B condenser spec file — GLXS4BA3010 matches the 2.5-ton cabinet)
| Category | Specification |
|---|---|
| Model | GLXS4BA3010 |
| Tonnage | 2.5 Ton |
| Cooling Capacity | 30,000 BTU/h |
| SEER2 | Up to 15.2 (AHRI dependent) |
| Compressor | Scroll |
| Stages | Single-stage |
| Refrigerant | R-32 |
| Factory Charge | 15' line set |
| Coil Type | Copper tube / aluminum fin |
| Fan Motor | High-efficiency condenser fan |
| Cabinet Material | Louvered, heavy-gauge steel |
| Electrical | 208/230V, 1-Phase |
| Dimensions (W × D × H) | 29″ × 29″ × 32½″ (2–2.5 Ton GLXS4B series) |
| Weight | Approx. 140–150 lbs (varies slightly by submodel) |
| AHRI Certified | Yes — multiple matching combinations available |
Warranty
Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
