Goodman 3 Ton R-32 AC System – GLXS4BA3610 Condenser + AMST36CU1300 Multi-Position Air Handler | 36,000 BTU Cooling

Upgrade your home’s comfort and efficiency with this matched 3-ton Goodman cooling system, featuring the GLXS4BA3610 air conditioner and AMST36CU1300 multi-position air handler. Engineered for lasting performance, quiet operation, and maximum energy savings, this 36,000 BTU R-32 system is an ideal replacement for older 14–15 SEER units—delivering modern cooling efficiency at an unbeatable value.

This complete setup comes ready for installation with a dependable single-stage compressor, all-aluminum evaporator coil, and an ECM multi-speed blower that ensures balanced airflow and consistent comfort in any season. With high-quality Goodman construction and AHRI-certified performance, you get a system that cools efficiently, runs quietly, and stands up to years of use.

🌬️ System Includes

✔ Goodman GLXS4BA3610 – 3 Ton R-32 Air Conditioner Condenser

✔ Goodman AMST36CU1300 – 3 Ton Multi-Position Air Handler with internal TXV

⭐ Key Benefits for Homeowners

• 36,000 BTU cooling capacity ideal for mid-size homes

• Optimized R-32 refrigerant system for reduced environmental impact

• Quiet, smooth cooling performance with ECM blower & sound-reducing cabinet

• Multi-position installation options (upflow, horizontal left/right)

• All-aluminum evaporator coil for long-lasting corrosion resistance

• Simple single-stage operation for reliable, low-maintenance comfort

• AHRI certified matched-system performance for maximum efficiency

• 10-year parts limited warranty with online registration

🌡️ GLXS4BA3610 Air Conditioner – Overview

The Goodman GLXS4BA3610 is built for dependable whole-home cooling. With a high-efficiency scroll compressor, aluminum fin coils, and durable louvered steel cabinet, it keeps your home comfortable even during peak summer heat—while minimizing energy usage.

GLXS4BA3610 Standard Features

• High-efficiency scroll compressor

• R-32 eco-friendly refrigerant

• Fully charged for 15 ft of lineset

• High-density foam compressor sound blanket

• Factory-installed filter drier

• Copper tube / enhanced aluminum fin coil

• High-pressure switch for protection

• Sweat connection service valves

• Architectural Gray powder-coated finish

• Removable grille-style top for quick service access

• ETL Listed & AHRI Certified

• Meets 2023 Florida Building Code when properly anchored

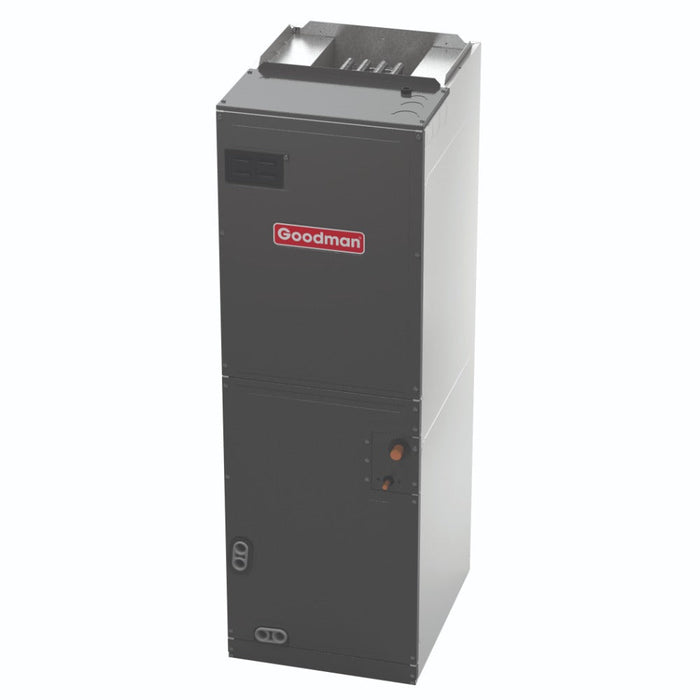

🌀 AMST36CU1300 Multi-Position Air Handler – Overview

From Goodman’s advanced AMST Series, this air handler is optimized for R-32 systems and engineered for quiet, efficient airflow. The internal TXV ensures proper refrigerant control, improving efficiency and system reliability.

AMST36CU1300 Standard Features

• Factory-installed thermal expansion valve (TXV) for cooling & heat pumps

• Direct-drive ECM multi-speed blower for quiet, efficient airflow

• All-aluminum evaporator coil for superior durability

• Rigid SmartFrame™ cabinet for structural strength

• Horizontal or vertical installation flexibility

• 21" cabinet depth for easier attic installation

• Foil-faced insulation to reduce condensation

• Screw-less sides/back to minimize moisture retention

• Tool-less filter access for easy maintenance

• Cabinet leakage <2.0% (ASHRAE Standard 193)

🔄 This System Replaces

• GSX140361

• GSXB403610

• ASPT36CU1400

• ARUF37C1400

🔧 Technical Specifications

⭐ GLXS4BA3610 Air Conditioner

⭐ AMST36CU1300 Air Handler

🛡️ Warranty

10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation
