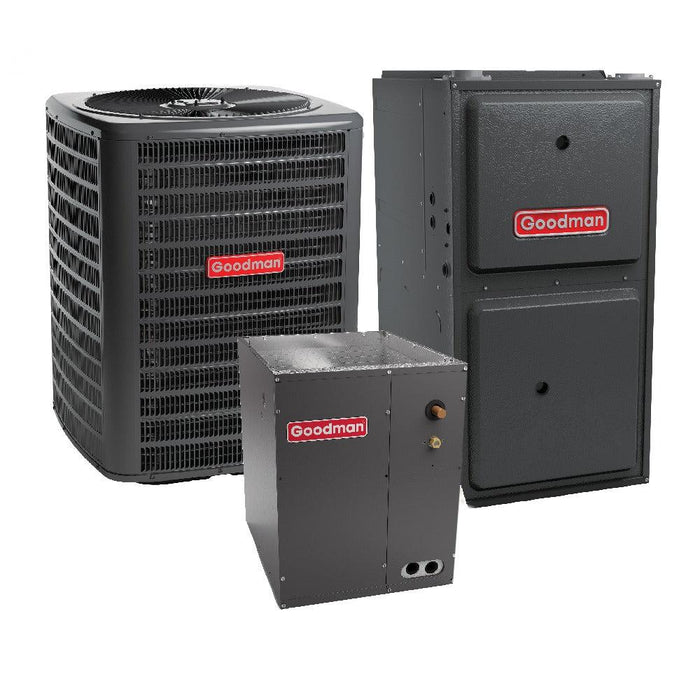

This matched Goodman system combines a 3 Ton 16.5 SEER2 R-32 air conditioner with a high-efficiency cased coil and a two-stage 96% AFUE upflow furnace. All components are AHRI-certified as a complete system to ensure correct performance, airflow, and efficiency. Designed for durable, quiet residential operation with upflow installation.

Ask us before you order to confirm compatibility, line set sizing, and installation requirements.

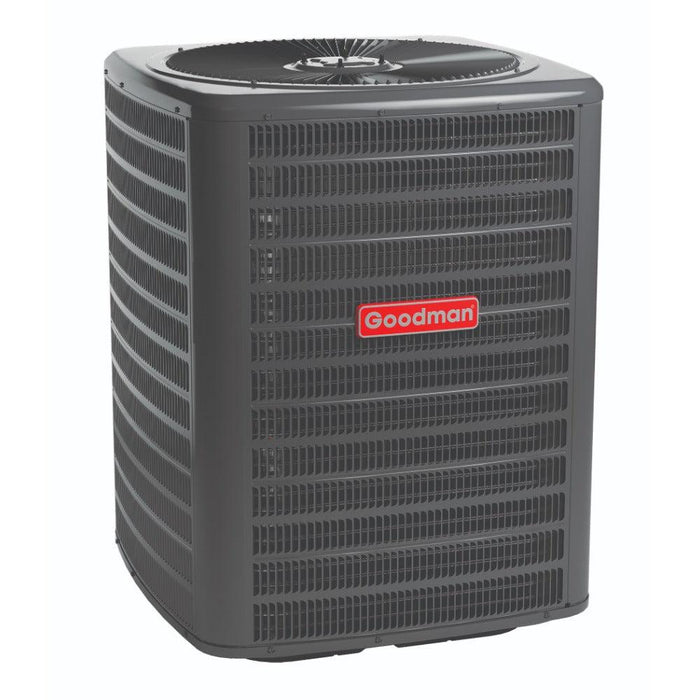

Goodman GLXS5BA3610 — 3 Ton 16.5 SEER2 R-32 Air Conditioner

Source: SS-GLXS5B-R32.pdf

• High-efficiency scroll compressor

• R-32 refrigerant

• Factory-installed filter drier

• 5mm copper tube / enhanced aluminum fin coil

• Fully charged for 15 ft of line set

• Steel louver coil guard; Architectural Gray finish

• Single-stage cooling

• AHRI Certified, ETL Listed

Dimensions

• H: 34.5 in

• W: 29 in

• D: 29 in

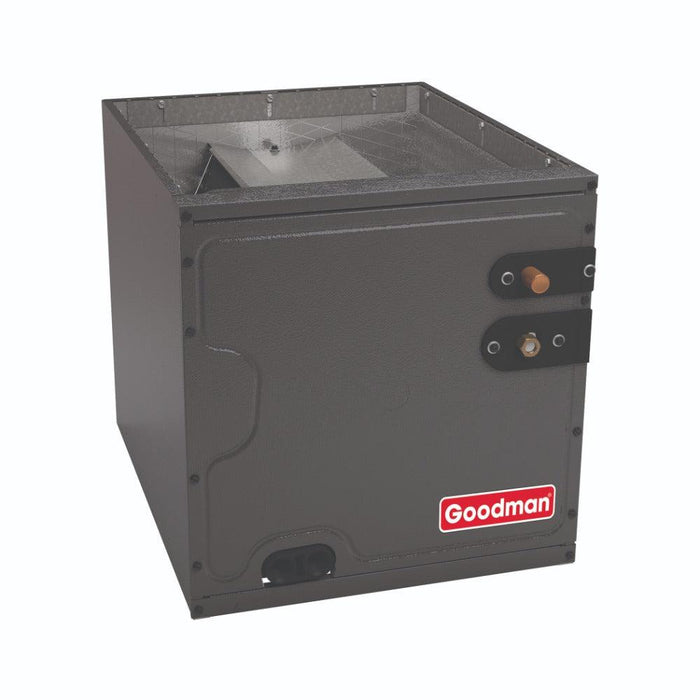

Goodman CAPTA4230C3 — Cased A-Coil

Source: R32 Coil Tech Specs.pdf

• Thermoplastic drain pan

• Grooved tube aluminum coil

• Painted galvanized steel cabinet

• Foil-faced insulation

• Multi-position application

• R-32 compatible

Dimensions

• H: 30 in

• W: 17.5 in

• D: 21 in

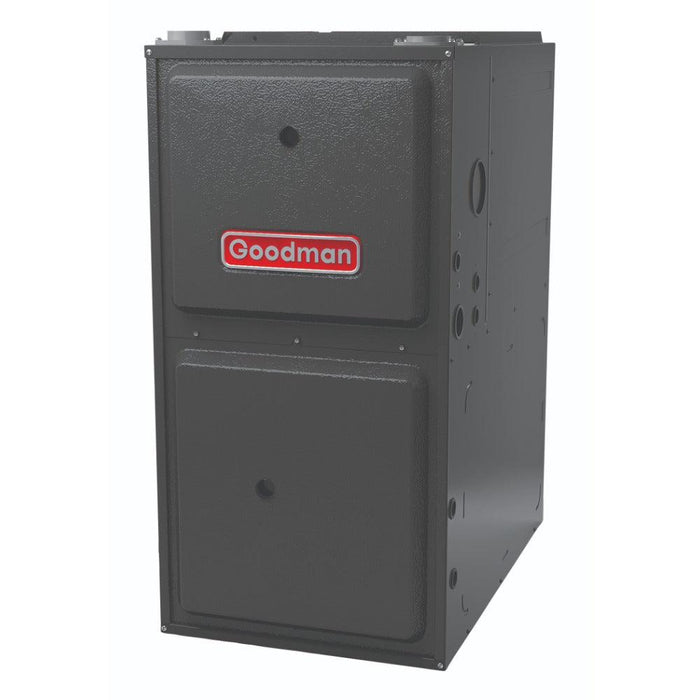

Goodman GR9T961005CN — 100,000 BTU 96% AFUE Two-Stage Furnace

Source: GRVT/GDVT96.pdf

• Two-stage gas valve

• Variable-speed ECM blower

• Aluminized-steel primary & stainless-steel secondary heat exchanger

• Compatible with single-stage thermostats

• Quiet operation with multi-speed airflow

• Upflow / horizontal configuration

Heating Performance

• Input: 100,000 BTU/h

• High Fire Output: 97,500 BTU/h

• Low Fire Output: 68,250 BTU/h

• AFUE: 96%

Furnace Dimensions

• H: 34.5 in

• W: 21 in

• D: 28.875 in

Bundle Specifications (AHRI 215380751)

Warranty

Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
