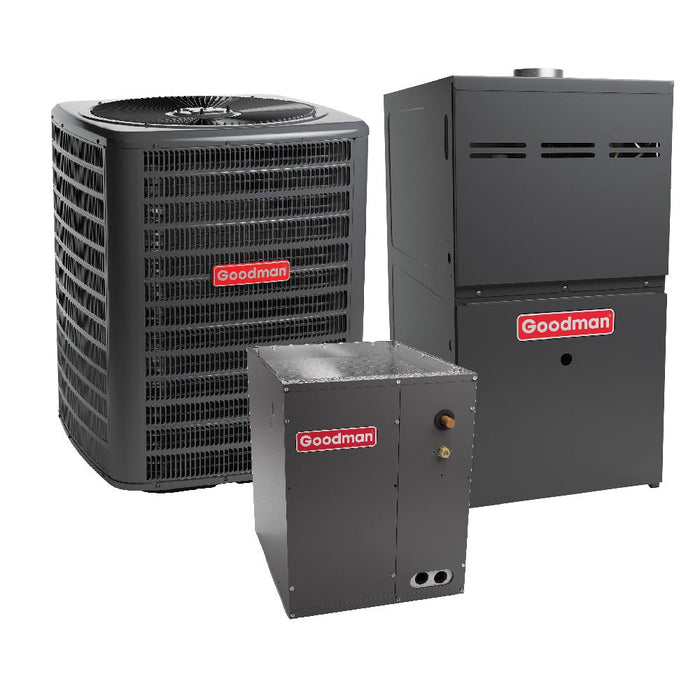

4 Ton 14.5 SEER2 120,000 BTU 80% AFUE Goodman Upflow Air Conditioner System with Models GLXS4BA4810, CAPTA6030D3, GR9S801205DN
The 4 Ton 14.5 SEER2 Goodman Upflow Air Conditioner System—featuring the GLXS4BA4810 condenser, CAPTA6030D3 indoor cased coil, and GR9S801205DN 120,000 BTU gas furnace—delivers powerful whole-home cooling and reliable 80% AFUE heating performance. This matched Goodman system is engineered for long-term durability, efficient airflow, and quiet operation, making it ideal for larger homes requiring strong comfort output.
Backed by AHRI Certificate #214860119, this 4-ton system provides verified performance, balanced airflow, and excellent compatibility across a wide range of installation conditions. Whether used for replacement or new construction, this Goodman combination offers rugged reliability and year-round comfort homeowners can trust.
Unit Features & Benefits
GLXS4BA4810 – 4 Ton Goodman Air Conditioner Condenser
Features
-
4 Ton (48,000 BTU/h) nominal cooling
-
14.5 SEER2
-
High-efficiency scroll compressor
-
Single-stage cooling
-
Copper tube / aluminum fin coil
-
R-32 optimized design
-
Factory-installed liquid-line filter drier
-
Heavy-gauge louvered steel cabinet
-
High-efficiency condenser fan motor
-
Fully charged for 15 ft of line set
-
AHRI Certified
Benefits
-
Reliable whole-home cooling performance
-
Durable cabinet designed for long outdoor life
-
Lower noise levels with optimized fan design
-
Strong efficiency for reduced summer operating costs
CAPTA6030D3 – 3.5–5 Ton Upflow/Downflow Cased Coil
Features
-
All-aluminum evaporator coil
-
24½″ wide painted cased coil
-
30″ height / 21″ depth
-
⅜″ liquid / ⅞″ suction connections
-
Factory-installed TXV
-
R-32 optimized internal design
-
Galvanized, embossed cabinet
-
Rust-resistant drain pan
-
AHRI Certified
Benefits
-
Excellent heat transfer and long coil life
-
Reduced corrosion and improved reliability
-
Stable refrigerant control with factory TXV
-
Simple access panel for easy servicing

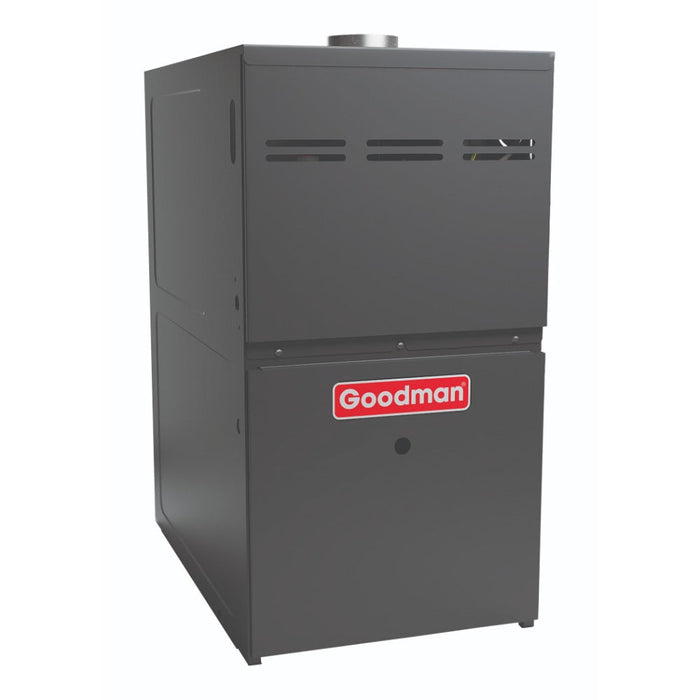

GR9S801205DN – 120,000 BTU Goodman 80% AFUE Upflow Gas Furnace
Features
-
120,000 BTU Input / 96,000 BTU Output
-
80% AFUE efficiency
-
Single-stage gas valve
-
Multi-speed ECM blower motor
-
Heavy-duty aluminized-steel tubular heat exchanger
-
Silicon nitride igniter
-
Self-diagnostic control board
-
Heavy-gauge insulated steel cabinet
-
Upflow installation
-
Left/right gas and electric connections
-
AHRI Certified
Benefits
-
Powerful heating for larger homes
-
Quiet, efficient blower operation
-
Long-lasting heat exchanger durability
-
Easy serviceability with diagnostic history
-
Reliable ignition in all weather conditions
Combined System Specifications
| Category | Specification |
|---|---|
| System Tonnage | 4 Ton |
| Cooling Efficiency | 14.5 SEER2 |
| Heating Input | 120,000 BTU |
| Heating Output | 96,000 BTU |
| AFUE | 80% |
| AHRI Certificate | 214860119 |
| System Type | Split A/C + Gas Furnace |
| Refrigerant | R-32 |
| Outdoor Unit Model | GLXS4BA4810 |
| Outdoor Cooling Capacity | 48,000 BTU |
| Outdoor Compressor | Scroll |
| Outdoor Staging | Single-stage |
| Outdoor Coil Type | Copper tube / aluminum fin |
| Outdoor Electrical | 208/230V, 1-Phase |
| Outdoor Dimensions (W × D × H) | 35½″ × 35½″ × 36½″ (GLXS4B) |
| Coil Model | CAPTA6030D3 |
| Coil Dimensions (W × D × H) | 24½″ × 21″ × 30″ |
| Coil Connections | ⅜″ Liquid / ⅞″ Suction |
| Furnace Model | GR9S801205DN |
| Furnace Input / Output | 120,000 / 96,000 BTU |
| Furnace Blower | Multi-speed ECM |
| Furnace Configuration | Upflow |
| Furnace Dimensions (W × D × H) | 21″ × 28″ × 33⅜″ (GR9S80 furnace width for 120k) |
| Electrical Requirements | 115V (furnace) / 208–230V (condenser) |
| AHRI Certified | Yes - 214860119 |
Warranty
Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
