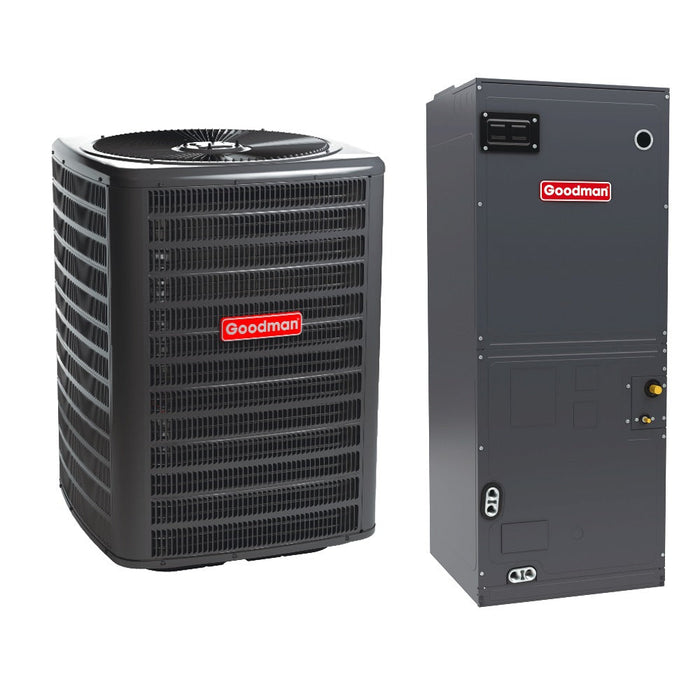

5 Ton 14 SEER2 Goodman Multi-Position Air Conditioner System with Models GLXS4BA6010 and AMST60DU1300
The Goodman 5 Ton 14 SEER2 Multi-Position Air Conditioner System combines powerful cooling performance with the reliability homeowners expect from Goodman. Featuring the GLXS4BA6010 R-32 high-efficiency outdoor condenser and the AMST60DU1300 multi-position ECM air handler, this system delivers strong whole-home cooling, improved energy efficiency, quiet operation, and long-term durability.
Engineered for flexible installations in upflow, downflow, or horizontal configurations, this 5-ton matched system is ideal for larger homes or light commercial applications. With advanced airflow technology, an all-aluminum evaporator coil, and environmentally friendly R-32 refrigerant, this system provides modern performance with reduced environmental impact.
✔ GLXS4BA6010 – 5 Ton 14 SEER2 R-32 Air Conditioner
Features
-
High-efficiency scroll compressor
-
Factory-installed filter drier for refrigerant protection
-
Quiet, single-speed condenser fan motor
-
Heavy-gauge, corrosion-resistant steel cabinet
-
High-efficiency R-32 refrigerant
-
Fully charged for 15 ft. of lineset
Benefits
-
Lower energy bills thanks to improved SEER2 performance
-
Reliable cooling during peak summer temperatures
-
Long service life due to compressor and cabinet durability
-
Quieter backyard operation
-
Reduced environmental footprint with R-32 refrigerant
✔ AMST60DU1300 – 5 Ton Multi-Position Air Handler
Features
-
Multi-speed ECM blower motor
-
Internal TXV for precise refrigerant control
-
All-aluminum evaporator coil
-
SmartFrame™ rigid cabinet design
-
Horizontal or vertical installation
-
Tool-less filter access
-
21" depth for easier attic access
-
AHRI Certified; ETL Listed
Benefits
-
Consistent, even cooling with ECM airflow
-
Reduced maintenance from corrosion-resistant aluminum coil
-
Flexible installation for tight spaces or retrofit jobs
-
Better indoor air quality via optimized airflow and filter access
-
Reliability homeowners trust with Goodman-built components
| Category | Specification |
|---|---|
| System Type | 5 Ton Split AC System |
| AHRI Certificate Number | 214860141 |
| Cooling Capacity | 60,000 BTU (5 Ton) |
| Efficiency | 14 SEER2 |
| Refrigerant | R-32 |
| Outdoor Unit Model | GLXS4BA6010 |
| Air Handler Model | AMST60DU1300 |
| Air Handler Motor | Multi-Speed ECM |
| Liquid Line Size | ⅜" |
| Suction Line Size | ⅞" |
| Air Handler Voltage | 208/230V |
| MCA (Air Handler) | 8.6 A |
| Max Fuse | 15 A |
| Outdoor Unit Dimensions (W×D×H) | 35.5" × 35.5" × 38.25" |
| Outdoor Unit Weight | 214 lbs |
| Air Handler Dimensions (H×W×D) | 58" × 23.25" × 24.625" |
| Air Handler Discharge Opening | 26" |
| Air Handler Return Opening | 22" |
| Air Handler Weight | 167 lbs |
Warranty
10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
