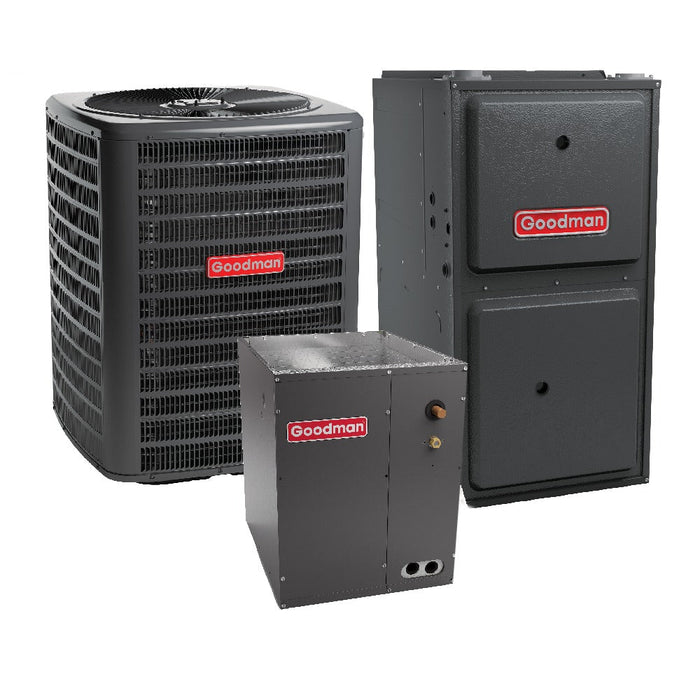

The Goodman 3 Ton 15.2 SEER2 Air Conditioner System with 80,000 BTU 96% AFUE furnace delivers efficient, reliable home comfort for year-round performance. This AHRI-matched system pairs the GLXS4BA3610 high-efficiency air conditioner, the CAPTA3626C3 all-aluminum cased evaporator coil, and the GR9S960804CN multi-speed ECM gas furnace for optimal airflow, lower energy consumption, and powerful cooling and heating.

With 15.2 SEER2 performance, a 96% efficient heat exchanger, and AHRI-verified compatibility (AHRI 214859772), this system ensures dependable operation in a wide range of installation environments. Goodman’s advanced engineering—quiet operation, corrosion-resistant coil design, and multi-position flexibility—makes this package a strong choice for homeowners seeking long-term value and dependable comfort.

Unit Features & Benefits

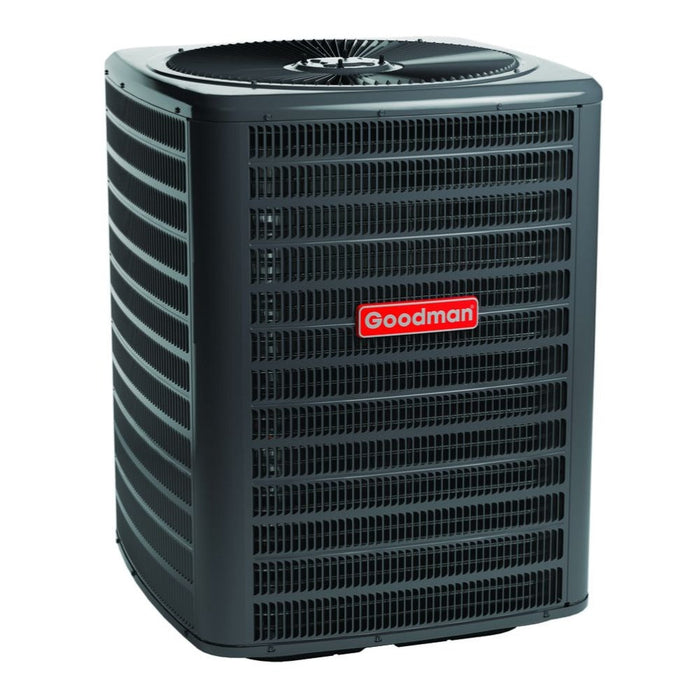

GLXS4BA3610 – 3 Ton Goodman Air Conditioner Condenser

Features

• 3 Ton (36,000 BTU/h) nominal cooling

• Up to 15.2 SEER2 efficiency

• High-efficiency scroll compressor

• Single-speed condenser fan motor

• Factory-installed filter drier

• Louvered galvanized steel cabinet for coil protection

• Copper tube / aluminum fin coil

• Quiet operation design

• Fully charged for 15 ft. of lineset

Benefits

• Reduced energy costs with SEER2-optimized performance

• Long-lasting outdoor durability

• Reliable cooling even in high-temperature conditions

• AHRI-certified performance when matched correctly

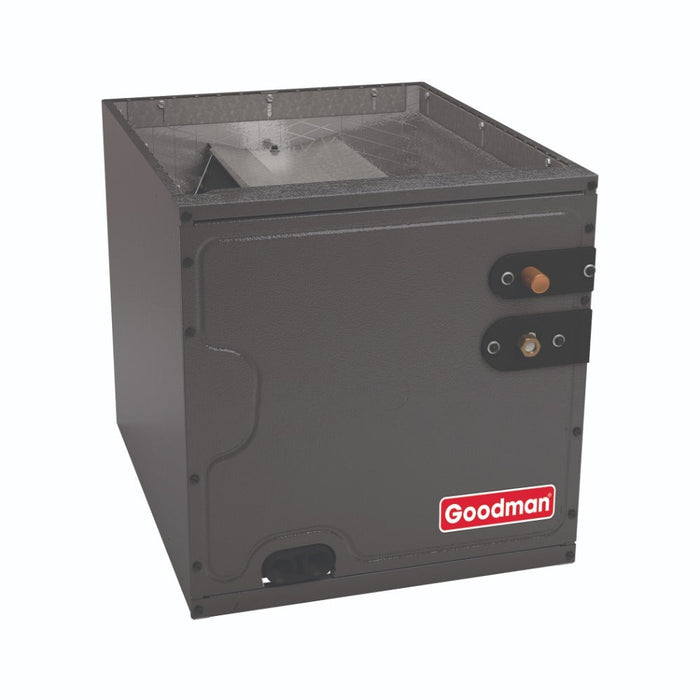

CAPTA3626C3 – 3 Ton Upflow/Downflow Cased Evaporator Coil

Features

• 2–3 Ton rated coil

• All-aluminum evaporator coil for enhanced corrosion resistance

• Factory-installed TXV for precise refrigerant metering

• Thermoplastic, rust-resistant drain pan

• Heavy-duty cased cabinet with single-panel access

• Approved for R-410A and heat pump applications

Benefits

• Improved efficiency and refrigerant control

• Long-lasting coil reliability

• Quiet, dependable moisture removal

• Easy installation and maintenance access

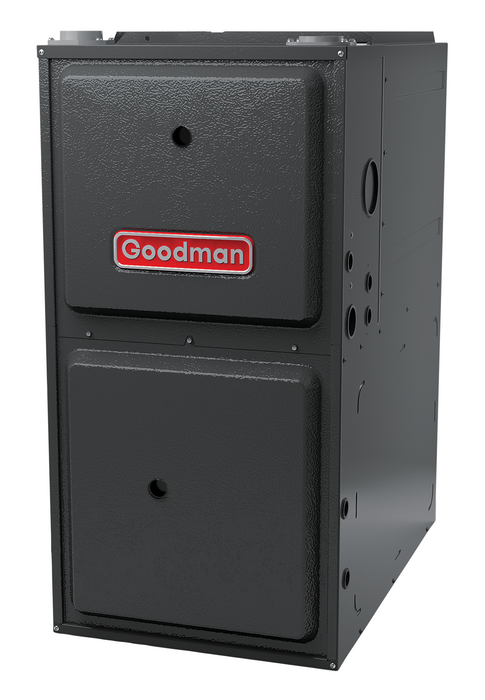

GR9S960804CN – 80,000 BTU 96% AFUE Single-Stage ECM Gas Furnace

Features

• 80,000 BTU/h input, 77,600 BTU/h output

• 96% AFUE efficient heating

• Heavy-duty aluminized-steel primary heat exchanger

• Stainless-steel secondary heat exchanger

• Nine-speed ECM blower motor

• Single-stage gas valve

• Quiet induced-draft blower

• Self-diagnostic control board

• Multi-position installation: Upflow / Horizontal

• Low NOx compliant (<40 ng/J)

Benefits

• Lower heating costs with high-efficiency AFUE

• Smooth, quiet airflow

• Long service life with durable heat exchangers

• Flexible install for retrofits or new construction

Specifications

GLXS4BA3610 – Condenser

CAPTA3626C3 – Evaporator Coil

GR9S960804CN – Gas Furnace

Bundle System Specifications

AHRI Reference #: 214859772

Warranty

Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
