2 Ton 15.2 SEER2 Goodman Multi-Position Heat Pump System with Models GLZS4BA2410 and AMST24BU1300
The 2 Ton 15.2 SEER2 Goodman Multi-Position Heat Pump System—featuring the GLZS4BA2410 heat pump condenser and AMST24BU1300 air handler—delivers reliable, energy-efficient year-round comfort for smaller homes, apartments, and tight installation spaces. This matched system provides steady cooling, dependable electric heating support, and quiet operation thanks to a high-efficiency compressor and multi-speed ECM blower.
Designed for both replacement and new construction, this 2-ton Goodman heat pump system offers flexible multi-position installation, improved humidity control, and AHRI-verified performance under certificate #215213871. Ideal for homeowners seeking dependable comfort, lower energy use, and long-lasting Goodman durability.
Unit Features & Benefits

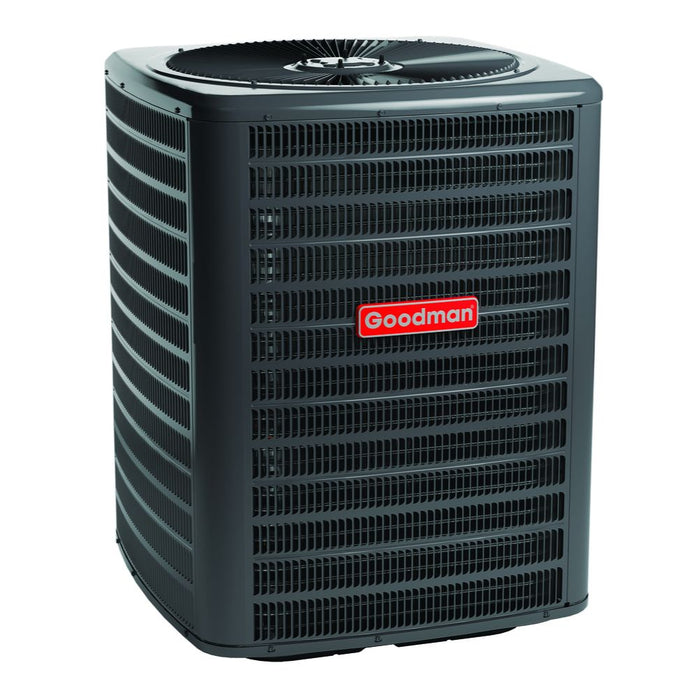

GLZS4BA2410 – 2 Ton Goodman Heat Pump Condenser
(Dimensions + features pulled from GLZS4B spec manual)
Features
-
2 Ton (24,000 BTU/h) nominal capacity
-
15.2 SEER2 efficiency
-
High-efficiency rotary compressor
-
Single-stage heating & cooling
-
Copper tube / aluminum fin coil
-
R-32 optimized design
-
Heavy-gauge louvered steel cabinet
-
Factory-installed filter drier
-
Quiet condenser fan motor
-
AHRI Certified
Benefits
-
Efficient performance for small to mid-size homes
-
Reliable single-stage heating & cooling
-
Strong outdoor durability with steel louvered cabinet
-
Quiet operation designed for residential settings

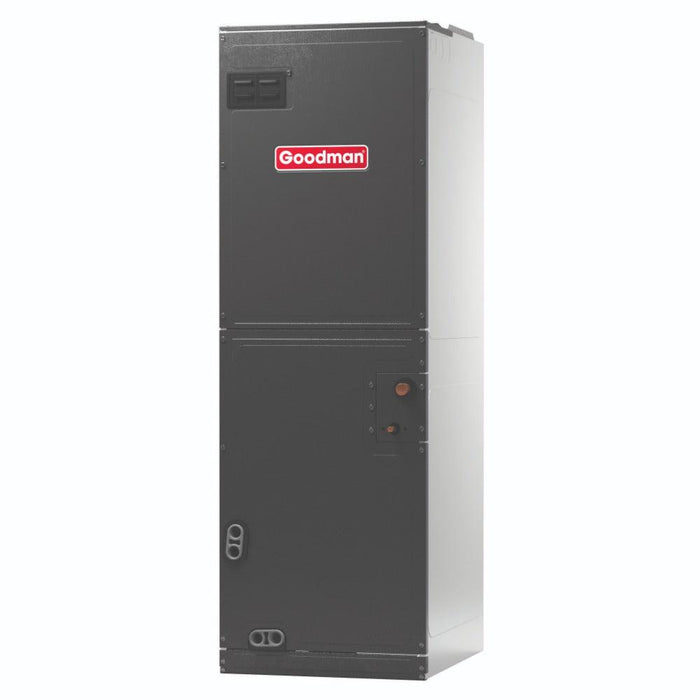

AMST24BU1300 – 2 Ton Multi-Position ECM Air Handler
(Specifications pulled from pages 1–4 of AMST spec sheet)
Features
-
24,000 BTU (2 Ton) nominal airflow capacity
-
Multi-speed ECM blower motor
-
Factory-installed TXV
-
All-aluminum evaporator coil
-
SmartFrame™ galvanized cabinet
-
Optimized for R-32 refrigerant
-
<2% cabinet air leakage (ASHRAE 193)
-
Vertical or horizontal installation
-
Compact cabinet footprint
-
Tool-less filter access
Benefits
-
Quiet, energy-efficient airflow
-
Better humidity control and stable cooling
-
Flexible installation in small spaces
-
Long-life, corrosion-resistant coil
Combined System Specifications
| Category | Specification |
|---|---|
| System Tonnage | 2 Ton |
| SEER2 Efficiency | 15.2 SEER2 |
| AHRI Certificate | 215213871 |
| System Type | Split Heat Pump |
| Refrigerant | R-32 |
| Outdoor Unit Model | GLZS4BA2410 |
| Outdoor Cooling Capacity | 24,000 BTU |
| Outdoor Compressor | Rotary |
| Outdoor Coil Type | Copper tube / aluminum fin |
| Outdoor Electrical | 208/230V, 1-Phase |
| Outdoor Dimensions (W × D × H) | 29″ × 29″ × 32½″ (GLZS4B 2–2.5 Ton Cabinet) |
| Outdoor Features | Filter drier, steel louvered cabinet |
| Indoor Unit Model | AMST24BU1300 |
| Indoor Capacity | 24,000 BTU |
| Blower | 10" × 6" |
| Blower Motor | Multi-speed ECM |
| Coil Type | All-aluminum |
| TXV | Factory-installed |
| Indoor Electrical | 208/240V, 1-Phase |
| Indoor Dimensions (H × W × D) | 45″ × 16⁵⁄16″ × 17⁹⁄16″ (page 4) |
| Drain Connection | ¾″ FPT |
| Indoor Cabinet | SmartFrame™, <2% leakage |
| Shipping Weight (Air Handler) | 112 lbs |
| Installation Options | Multi-position (upflow, horizontal, downflow compatible with kit) |
Warranty
Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
