2 Ton 15.2 SEER2 Goodman Multi-Position Heat Pump System with Models GLZS4BA2410 and AMST30BU1300
The 2 Ton 15.2 SEER2 Goodman Multi-Position Heat Pump System—featuring the GLZS4BA2410 condenser and AMST30BU1300 air handler—provides reliable, energy-efficient heating and cooling for year-round home comfort. Designed for both replacements and new installations, this matched system delivers quiet operation, strong performance, and flexible installation options to fit a wide variety of residential layouts.
Ideal for replacement or new construction, this system offers the rugged reliability and long-term comfort that Goodman systems are known for.
Unit Features & Benefits

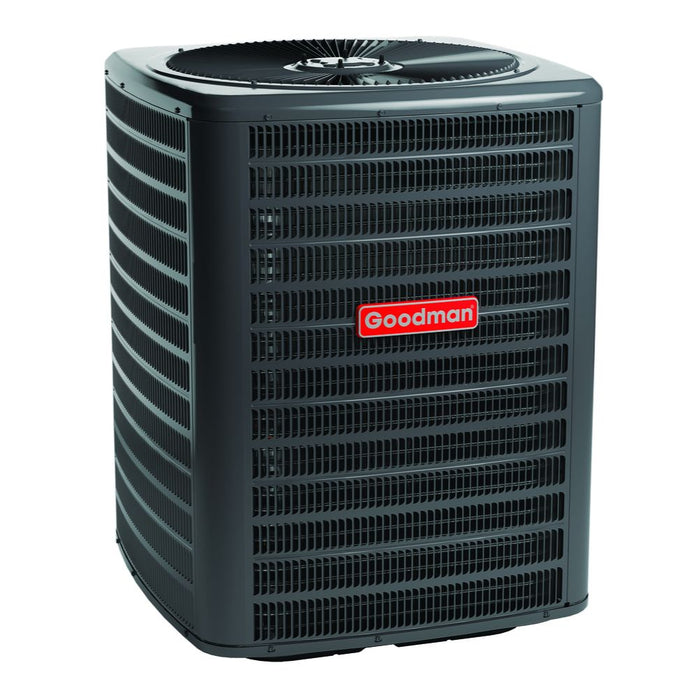

GLZS4BA2410 – 2 Ton Goodman Heat Pump Condenser
Features
-
2 Ton (24,000 BTU/h) nominal heating & cooling
-
15.2 SEER2 cooling efficiency
-
High-efficiency rotary compressor
-
Single-stage heating & cooling
-
Heavy-duty louvered steel cabinet
-
Enhanced aluminum fin coil (R-32 optimized)
-
Factory-installed bi-flow liquid-line filter drier
-
Factory-installed suction-line accumulator
-
Factory-installed crankcase heater
-
AHRI Certified
Benefits
-
Efficient, reliable heating and cooling
-
Lower energy consumption with SEER2-rated performance
-
Durable cabinet withstands harsh weather
-
Quiet outdoor operation designed for residential use

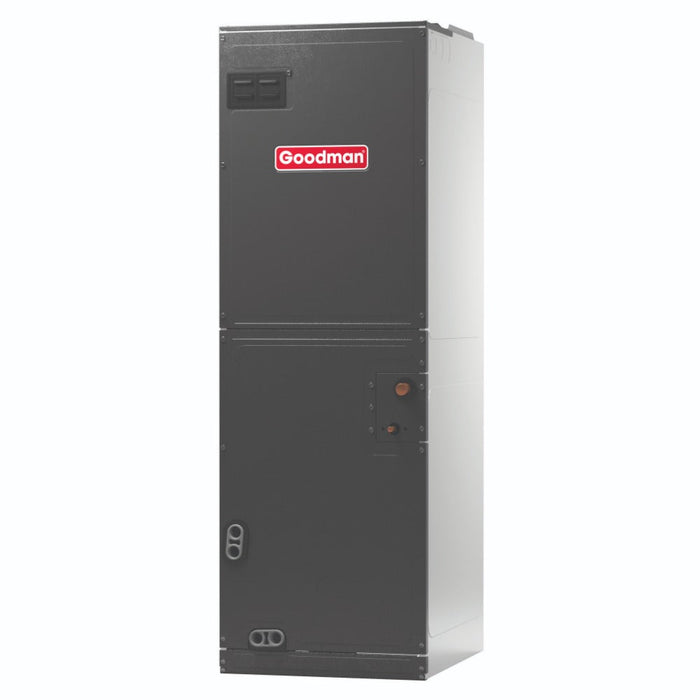

AMST30BU1300 – 2.5 Ton Multi-Position ECM Air Handler
(Specs validated from AMST manufacturer file)
Features
-
Nominal 30,000 BTU capacity (2.5 Ton air handler matched to 2 Ton condenser per AHRI)
-
Multi-speed ECM blower motor
-
Factory-installed TXV
-
All-aluminum evaporator coil
-
R-32 optimized SmartFrame™ cabinet
-
<2% cabinet air leakage (ASHRAE 193 tested)
-
Horizontal or vertical installation
-
Compact depth for tight spaces
-
Tool-less filter access
Benefits
-
Quiet, consistent airflow throughout the home
-
Enhanced humidity control during cooling operation
-
Flexible installation in closets, attics, or utility spaces
-
Long-lasting corrosion-resistant coil design
Combined System Specifications (ONE Big Table)
| Category | Specification |
|---|---|
| System Tonnage | 2 Ton |
| SEER2 Efficiency | 15.2 SEER2 |
| AHRI Certificate | 215218022 |
| System Type | Split Heat Pump |
| Refrigerant | R-32 |
| Outdoor Unit Model | GLZS4BA2410 |
| Outdoor Capacity | 24,000 BTU |
| Outdoor Compressor | Rotary |
| Outdoor Stage | Single-stage |
| Outdoor Coil Type | Enhanced aluminum fin coil |
| Outdoor Electrical | 208/230V, 1-Phase |
| Outdoor Dimensions (W × D × H) | 29″ × 29″ × 32½″ (GLZS4BA2410) |
| Outdoor Features | Filter drier, accumulator, crankcase heater |
| Indoor Unit Model | AMST30BU1300 |
| Indoor Capacity | 30,000 BTU |
| Blower | 10" × 8" |
| Blower Motor | ECM |
| Coil Type | All-aluminum |
| TXV | Factory-installed |
| Indoor Electrical | 208/240V, 1-Phase |
| Indoor Dimensions (H × W × D) | 53 7/16″ × 17 7/8″ × 21 1/8″ (from AMST PDF) |
| Drain Connection | ¾″ FPT |
| Indoor Cabinet | SmartFrame™, <2% leakage |
| Installation Options | Multi-position (upflow, downflow, horizontal) |
| Shipping Weight (Air Handler) | 150 lbs |
Warranty
Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
