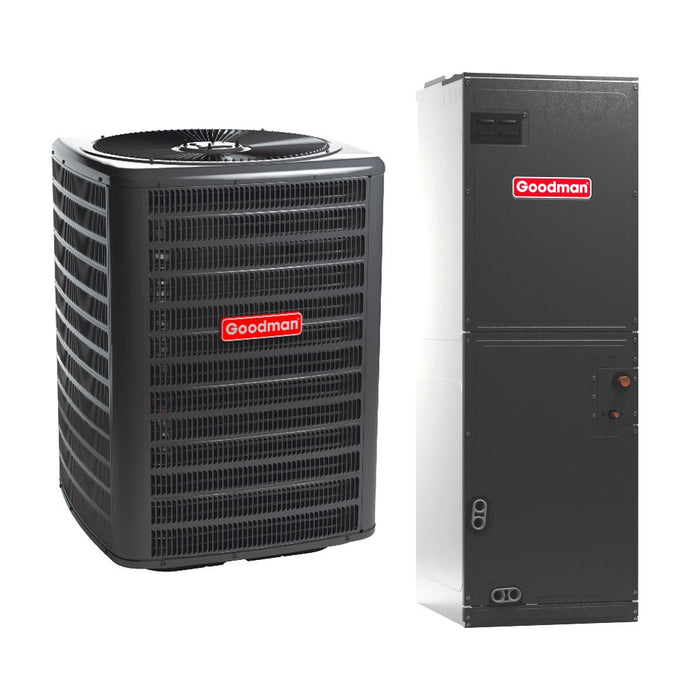

3 Ton 15 SEER2 Goodman Multi-Position Heat Pump System with Models GLZS4BA3610 and AMST36CU1300
The 3 Ton 15 SEER2 Goodman Multi-Position Heat Pump System is engineered to deliver dependable, energy-efficient year-round comfort. This AHRI-matched system pairs the GLZS4BA3610 heat pump with the AMST36CU1300 ECM air handler, providing quiet operation, reliable heating and cooling performance, and flexible installation options for residential applications.
The GLZS4BA3610 uses a high-efficiency scroll compressor and a durable louvered steel cabinet to withstand outdoor conditions, while the AMST36CU1300 delivers smooth, consistent airflow through its multi-speed ECM motor and corrosion-resistant all-aluminum coil. Together, this certified combination ensures optimized performance, verified efficiency, and strong indoor comfort.
This system is AHRI Certified (215213859), guaranteeing compatibility, verified efficiency, and tested reliability homeowners can trust.
Unit Features & Benefits

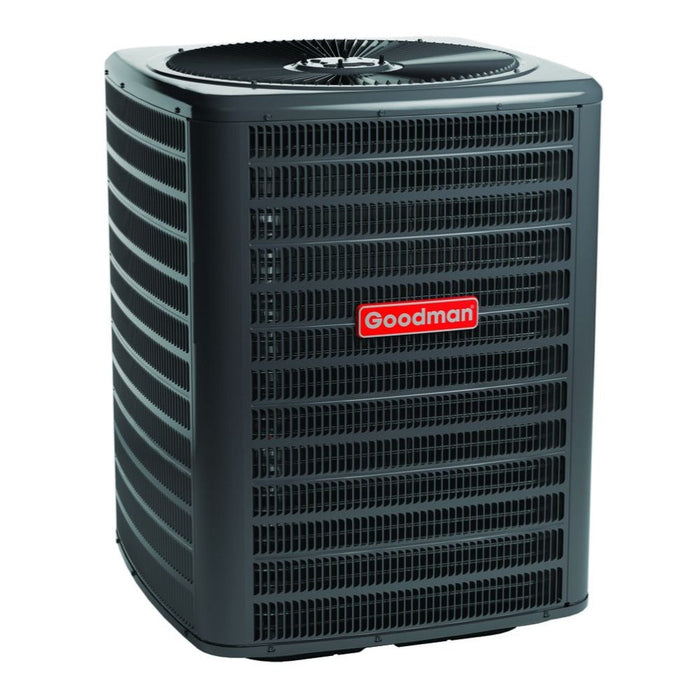

GLZS4BA3610 – 3 Ton Goodman Heat Pump (Outdoor Unit)
Key Features
-
3 Ton (36,000 BTU/h) nominal capacity
-
15.0 SEER2 cooling efficiency
-
High-efficiency scroll compressor
-
Single-stage heating and cooling
-
Factory-installed filter drier for system protection
-
Heavy-duty louvered steel cabinet
-
Quiet condenser fan motor
-
Fully charged for standard lineset length
-
AHRI Certified
AMST36CU1300 – 3 Ton Multi-Position ECM Air Handler (Indoor Unit)
Key Features
-
3 Ton (36,000 BTU/h) rated airflow
-
Multi-speed ECM blower motor
-
Factory-installed TXV
-
All-aluminum evaporator coil
-
Designed for upflow, downflow, or horizontal installations
-
Ultra-low air leakage (≤2% @ 1.0" WC)
-
R32-optimized design
-
Tool-less filter access
-
SmartFrame™ cabinet for stability and serviceability
Specifications (Dimensions Included)
GLZS4BA3610 – Outdoor Heat Pump
| Specification | Value |
|---|---|
| Tonnage | 3 Ton |
| Cooling Efficiency | 15.0 SEER2 |
| Heating Efficiency | AHRI Certified |
| Compressor Type | High-efficiency scroll |
| Refrigerant | R-410A |
| Electrical | 208/230V, 1-Phase |
| Dimensions (W × D × H) | 29" × 29" × 39½" |
| Cabinet | Louvered steel |
| AHRI Certified | Yes |
AMST36CU1300 – Indoor Air Handler
| Specification | Value |
|---|---|
| Tonnage | 3 Ton |
| Motor Type | Multi-speed ECM |
| Coil | All-aluminum |
| TXV | Factory-installed |
| Refrigerant Compatibility | R-32 optimized |
| Electrical | 208/240V, 1-Phase |
| Dimensions (H × W × D) | 49" × 19 13⁄16" × 21 1⁄8" |
| Drain Connection | ¾" FPT |
| Air Leakage | ≤2% @ 1.0" WC |
| AHRI Certified | Yes |
Bundle System Specifications
AHRI Reference #: 215213859
| Category | Specification |
|---|---|
| System Tonnage | 3 Ton |
| SEER2 | 15.0 SEER2 |
| Outdoor Unit | GLZS4BA3610 |
| Indoor Unit | AMST36CU1300 |
| Cooling Capacity | 36,000 BTU/h |
| Refrigerant | R-410A |
| System Type | Split Heat Pump |
| AHRI Certified | Yes |
Warranty
Goodman offers a 10-year parts limited warranty if installed by a qualified installer and registered online within 60 days of installation.
